Product Description

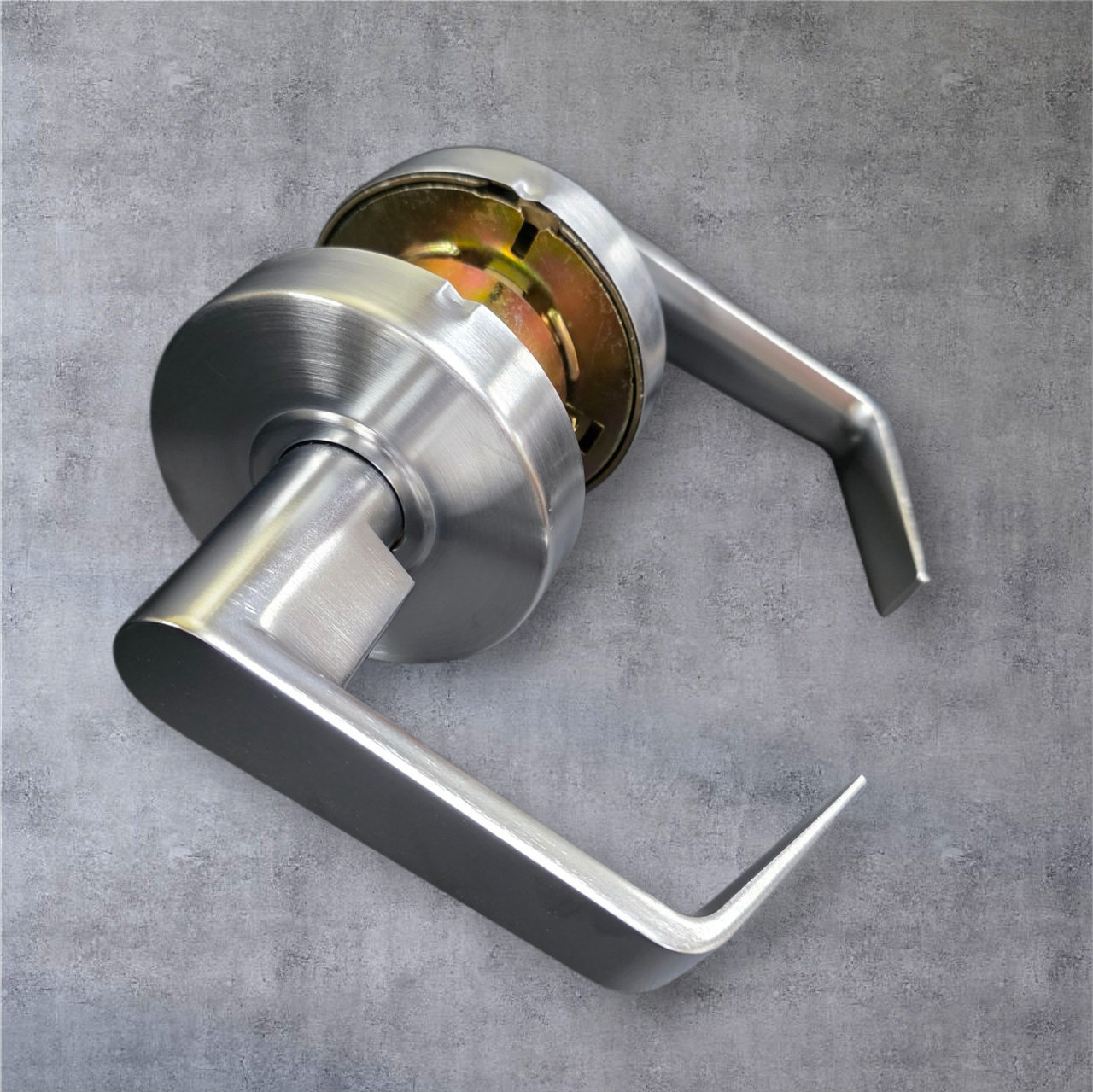

USCAN USL200 Series Commercial Grade 2 Clutched Classroom Leverset-626 Dull Chrome Finish
Commercial Grade 2 classroom function lever set door handle. Includes instructions and mounting hardware.
Manufacturer's limited lifetime warranty. (picture shown without latch installed) Latch is included.
Clutched Classroom Function Definition:
A clutched classroom function leverset is a heavy-duty commercial lock designed for high-abuse areas like schools, where the outside lever is locked or unlocked by a key while the inside lever remains free. The "clutch" allows the outside lever to turn freely when locked to prevent vandalism and internal damage.
Key Features and Benefits
- Clutch Mechanism: If the outside lever is locked, it spins freely without retracting the latch, preventing breakage from force.
- Classroom Function: Keyed entry outside; interior lever always allows free exit.
- Operation: A 360-degree key turn from the outside locks or unlocks the lever, allowing it to be kept unlocked during school hours.
Description
- Model Number: USL272D
- Part Number: 960-212
- Function: Classroom
- Backset: 2-3/4" (70 mm) (standard)
Specifications
- Medium duty cylindrical "Clutched" Grade 2 lever set
- SC1 Keyway
- Removeable outer thru-bolting
- Adjustable door thickness
- 2-3/4" UL listed latch bolt (standard)
- ANSI strike
- Designed to install with ease
